Fabric Bag Dust Collector

Fabric Bag Dust Collector

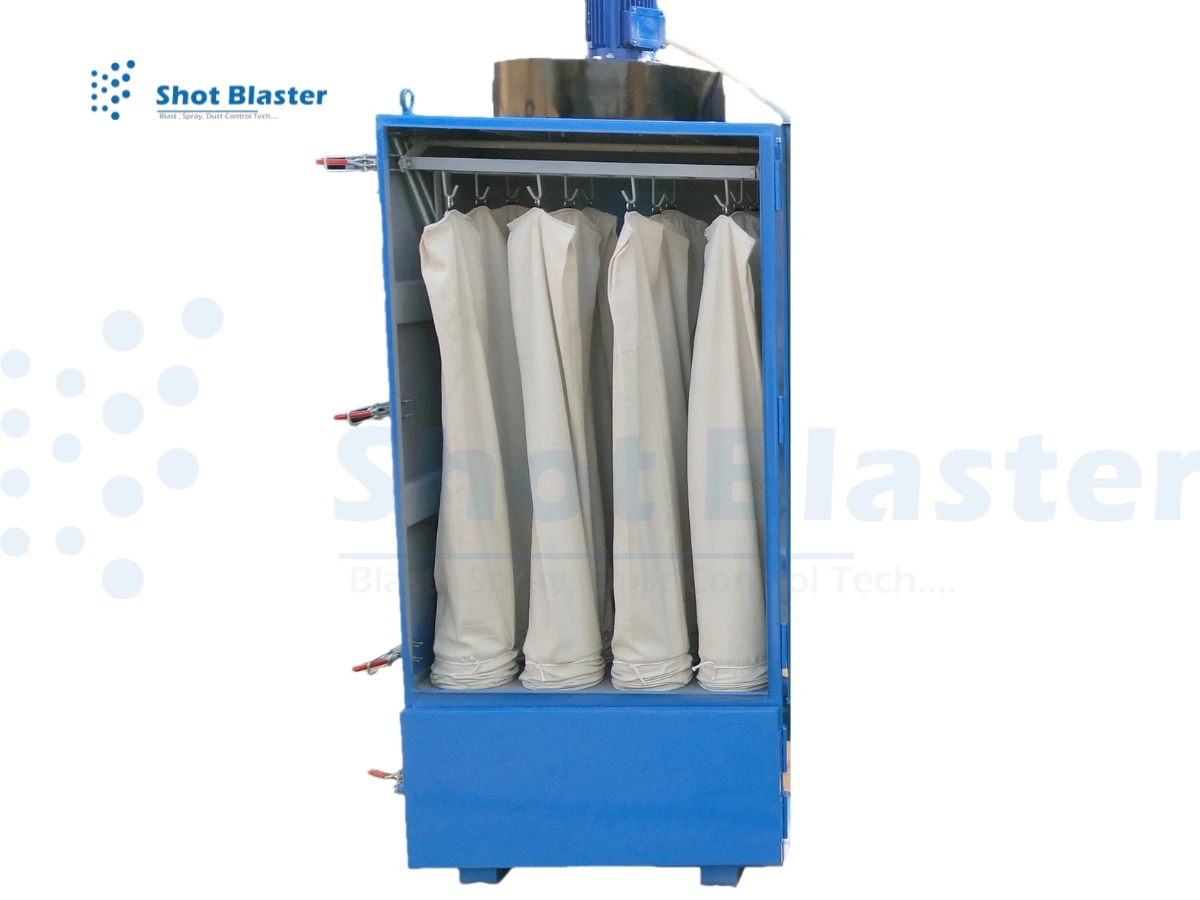

Fabric Bag Dust Collector also called Bag Filters, Baghouse, we usually used dirt collectors for massive dirt process applications. Bag filters use long cylindrical tubes of woven fabric material or non-woven felt fabric material bags of 05 - 12 inches diameter (130 - 300 mm), and 6.5 - 10 feet (2M - 3M) or more in length, open from one cease.

Some of the clear-out bag tubes are housed inside the dirt collector frame forming a matrix of rows, in reference to the total filter-out fabric area needed for the designed ability of a dirt collector. The high extent centrifugal blowers of designed pressure create required suction for Dust Collector from the source.

Working of Fabric Bag Dust Collector

Dust-laden air is drawn into the dust collector through the inlet due to suction created via exhaust fan and passes through material luggage. Heavier dirt particles fall into the hopper because of a loss of momentum. Finer dust gets deposited on the inner surface of material baggage and easy air passes across the outer surface of filter-out bags after which exit into the atmosphere through the outlet. Baggage is wiped clean through the motorized shaking arrangement. When a motor is switched OFF, the shaking cycle receives activated automatically and baggage is shaken for the preset timer. Dust launched from filter-out luggage slides downward into the hopper for in addition collection into the dustbin.

Features of Fabric Bag Dust Collector

• Low Maintenance and Replacement of Fabric
• It Assures longer life of bags
• Fabric bags are normally of cotton-woven satin cloth.

Motorized Shaking Fabric Bag Dust Collector

Motorized Shaking Fabric Bag Dust Collector also known as Shaker Dust Collector or Shaker Fabric Filter Out. It refers to a dirt collector using a shaker cleaning device to remove the collected dust particles from the floor of the filter-out media via mechanically shaking the clear-out luggage with the help of a motor. This may be accomplished by way of two approaches either manually or through the use of a motor driving an eccentric which in turn has been linked to the filter out bags.

Applications of Motorized Shaking Fabric Bag Dust Collector

• Wood Dust Collector
• Sand Blasting Machines
• Shot Blasting Machines
• Metal Grinding
• Pharmaceutical
• Paper Core Grinding
• Grinding or Buffing Applications

Reverse Pulse Jet Fabric Bag Dust Collector

In Reverse Pulse Jet Fabric Bag Dust Collector, individual luggage is supported with the aid of a steel cage within the cloth bag that is mounted onto a mobile plate at the pinnacle of the bag clear out. Dirty gas enters from the bottom of the bag filter and flows from outside to in the bags. The metal cage prevents the fall apart of the bag filter out.

Application of Reverse Pulse Jet Fabric Bag Dust Collector

• Woodworking Dust
• Sand Blasting
• Shot and grit blasting
• Ceramics
• Pharmaceuticals
• Chemicals
• Activated Carbon
• Food Processing
• Rubber

Reverse Pulse Jet Pleated Filter Dust Collector

Reverse Pulse Jet Pleated Filter Dust Collector is a dirt collector utilized in industries or factories. An excessive stress blasting of air is done to put off the dust from the Pleated Filter Bag. The blasted air enters from the top of the Pleated Filter Bag Tube, quickly stopping the go with the flow of grimy air. The unexpected surprise of air causes a wave of expansion to journey down the pleated clear-out bag.

Applications of Reverse Pulse Jet Pleated Filter Dust Collector

• Sand Blasting, Shot, or Grit Blasting Machines
• Metalizing Spray Booth
• Powder Coating Booth
• Pharmaceuticals
• Cement
• Powder & Coating
• Metals & Minerals
• Chemicals
• Steel & Power

Fabric Bag Dust Collector Manufacturer in India

Blast Rooms are the leading Fabric Bag Dust Collector Manufacturer in India. We are also the supplier and exporter of Pleated Filter Bag Dust Collector, Dust Collector, Abrasive Media, Thermal Spray Gun, Sand Blasting Nozzles, Sand Blasting Cabinets, and more.

Call us on - Ph: +91-80039 97469

For more Queries Email us at - info@blastrooms.in
