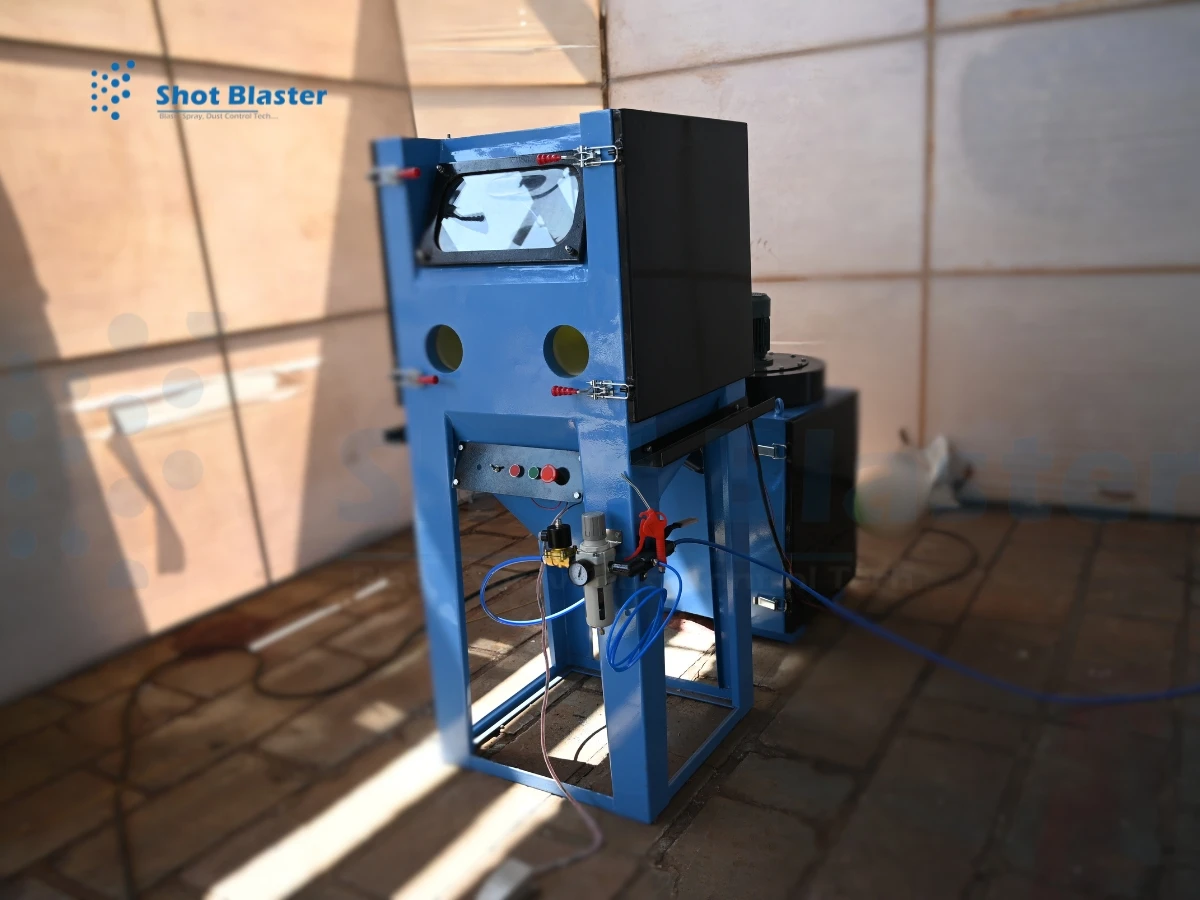

Sand Blasting Cabinet

Sand Blasting Cabinet is a different type of Sand Blasting Machine in which it has a cabinet and is a closed or enclosed form of the machine. In that closed section blasting of contaminants as well as recycling of abrasive media takes place.

Sand Blasting Cabinet
Product Details:
₹1.50 Lakh - 3.50 Lakh

Description BR6060 BR9182 BR12090
Working chamber(mm) (l)600x(w)600x(h)600 (l)900x(w)910x(h)900 (l)900x(w)1200x(h)900
Door opening(mm) (w)500x(h)500 (w)730x(h)675 (w)800x(h)800
Overall dimension (mm) (l)1500x(w)800x(h)1660 (l)1400x(w)1070x(h)2000 (l)1700x(w)1365x(h)2570
Compressed air required(cfm) 17 20 47
Cleaning area (sq. mt/Hr) 4-7 4-7 15-21
Nozzle (mm) 5/6 5/6 10

  • During construction projects, shot blasting is also used to clean the outer walls, roads, and floors.
  • Shot blasting is often used to clean tanks and pipes underwater before coating or recoating them to stop corrosion.
  • ShipYard and ShipBuilding.
  • aircraft maintenance and aerospace.
  • Foundry for iron, steel, and other metals.
  • The casting of aluminum.
  • Forgings.
  • Rail.
  • Foundries.
  • fabrication of steel.
  • Car and bus murals.
  • Wheel cleaning for alloys.

Sand Blasting Cabinet is any other type of Sand Blasting Machine, Shot Blasting Machine that has a cupboard and is a closed or enclosed form of the machine. In that closed component blasting of contaminants in addition to the recycling of abrasive media takes place. There are several different capabilities that are blanketed like cleansing, and recycling in addition to the collection of dirt substances too. In this System, there is a window from which the operator can see what goes on inside the process; there may be an opening gate from where the blasting fabric or blasting surface is saved inside the Sand Blasting Cabinet.

Working of Sand Blasting Cabinet

As sand is used because of the abrasive media within the blasting system as a consequence to avoid visibility dirt creditors or dust extractors are even connected with the enclosed sandblaster cabinet. Inside the Sand Blasting Cabinet, the operator no longer requires any protection devices like a protection match, mask or helmet, footwear, etc. Because the whole system is done within the cabinet.

This makes eco-friendly, cost-effective, and pollution-free environments, so it is additionally known as a Dustless Blasting Cupboard and Industrial Sand Blasting Cabinet Machine. In a cyclone sandblast cabinet dust collector is used known as a cyclone. Sand Blasting Cabinet Dust Collector or extractor are many styles of material bag dust collector, opposite pulse jet pleated filter out dirt collector, cyclone type dirt extractor Sand Blasting Cupboard for sale and provider offices in all towns in India in order that we fulfill the demands of customers at a given time.

Types of Sand Blasting Cabinet

  • Wet Blasting Cabinet
  • Pressure Blasting Cabinet
  • Suction Blasting Cabinet

Wet Blasting Cabinet

The wet abrasive sand blasting cabinet or usually called wet blasting cabinet uses a seal-less slurry pump to transform the abrasive media and water into a slurry mixture. This slurry mixture is then transferred or pumped without delay to the abrasive blast gun where compressed air stress moves the combination with the favored stress score.

Pressure Blasting Cabinet

Pressure Blasting is paintings on the direct strain precept of blasting. It uses a pressurized vessel or “blast pot” that holds the abrasive media. In a strain blast cabinet, the air stress inside the vessel and within the “pusher” the line is maintained to be the same. This means that there is no pressure differential between the blast pot and the blast line this lets in the abrasive media to meter into the airstream on the blast container and then circulate the blast hose or pipe out to the nozzle. The abrasive equipment in the pressure blasting cabinet has a single hose that leads to the blast nozzle. A sandblaster dust collector is attached with a strain blasting cabinet.

Suction Blasting Cabinet

Suction Blasting Cabinet is based on the Injection Suction principle of the blasting system. It works on the Venturi principle to get abrasive media from a non-pressurized storage hopper or tank to the blast gun where it is mixed with the compressed air stream and propelled against the work blasting surface. Suction blast machines or suction blasting cabinets are most easily recognized by having two hoses (one for air and one for abrasive media) running to the blast gun.

Components of Sand Blasting Cabinet

Sand Blasting Cabinet typically consists of four components which are:

  • Cabinet
  • Abrasive blasting system
  • Abrasive recycling system
  • Dust Collection

Sand Blasting Cabinet Price in India

Blast Rooms Manufacturer, Supplier & Exporter of Sand Blasting Cabinet in India at a low price. We provide all types of Sand Blasting Machine, Shot Blasting Machine, Grit Blasting Machine, and Pressure Blasting Machine, according to customer needs in India.

Our Packaging/Payment and Shipment Details

Customized Packaging

Yes

Payment Mode

Cash

Cheque

DD

Credit Card

Shipment Mode

By Air

By Road

By Cargo

Delivery Time

1-2 weeks from the date of confirmation

of Purchase Order and Advance.

Call us on: +91-9521151051

For more Queries Email Us at - info@blastrooms.in

Grit  Blasting Cabinet

Portable Sand Blasting Machine

Frequently Asked Questions (FAQ):
Q. How much does a sand blasting machine cost?

Ans.

Sand blasting machine prices vary according to the cleaning rate and storage capacity. Sand blasting machines are available in many sizes as per the requirement.

Q. What is the sand blasting process?

Ans.

Sand blasting is a surface cleaning process. With the help of a sand blasting machine rust, and foreign particles remove easily. Sand blasting machine in India is available both in automatic and manual types.

Q. Is sand blasting hard?

Ans.

Sand blasting is easy to perform. While blasting it is necessary to wear operator safety wears so it will protect the operator from hazards. A portable sand blasting machine is used in an open area for large size of components. A portable sand blasting machine in India is a manual and semi-automatic type. Airless sand blasting machines are automatic and manual type as well.

Q. What is the weight of the sand blasting machine?

Ans.

Sand blasting machine in India is available in many sizes. The weight of the sand blasting machine varies according to the size of the storage capacity tank. As the size of the capacity tank varies, sand blasting machine prices also vary.

Q. What is a sand blasting application?

Ans.

Sand blasting is a process of removing rust, old paint, burrs, and other impurities from the component surfaces. Sand blasting has a wide range of applications in many areas like wood, glass, steel, plastic, shipbuilding industries, on buildings, medical equipment, etc. Sand blasting machine in India also rough the smooth surface according to the application area.

Q. Where do we use sand blasting?

Ans.

Sand blasting machine uses in various areas such as:-

  • Railway coaches
  • Handicrafts and wood
  • Steel pipes
  • Stones, Marbles, Granites
  • Transformers and Tanks
  • Military
  • Shipyards
  • Bridges
  • Turbines
  • Vehicle bodies, Automobiles, Turbocharges
  • Windmill
  • Casting, and forging

Q. What equipment is required for a sand blasting process?

Ans.

An Air compressor is required for a sand blasting machine process. For an airless sand blasting machine, an electric wheel is used. Sand blasting machine in India is available in many varieties as per the requirement of the customers.

Q. How much air pressure is needed for the sand blasting machine?

Ans.

For a sand blasting machine process minimum of 100 PSI air compressor is required. If work with a lower PSI cleaning rate of sand blasting machine in India is decreasing.

Q. Does sand blasting damage the component?

Ans.

Sand blasting machine in India gives surfaces a slightly textured profile. Sand blasting machine does not damage the component. Instead, sand blasting makes the component surface better so that thermal spray coating binds easily.

Q. What sand is best for the sand blasting process?

Ans.

In sand blasting most commonly used sand is white silica sand. Other blasting media such as aluminum oxide, glass beads, walnut shell, silicon carbide, etc are used in a sand blasting machine in India. Sand blasting machine price in India also vary as per the storage capacity of the tank.
