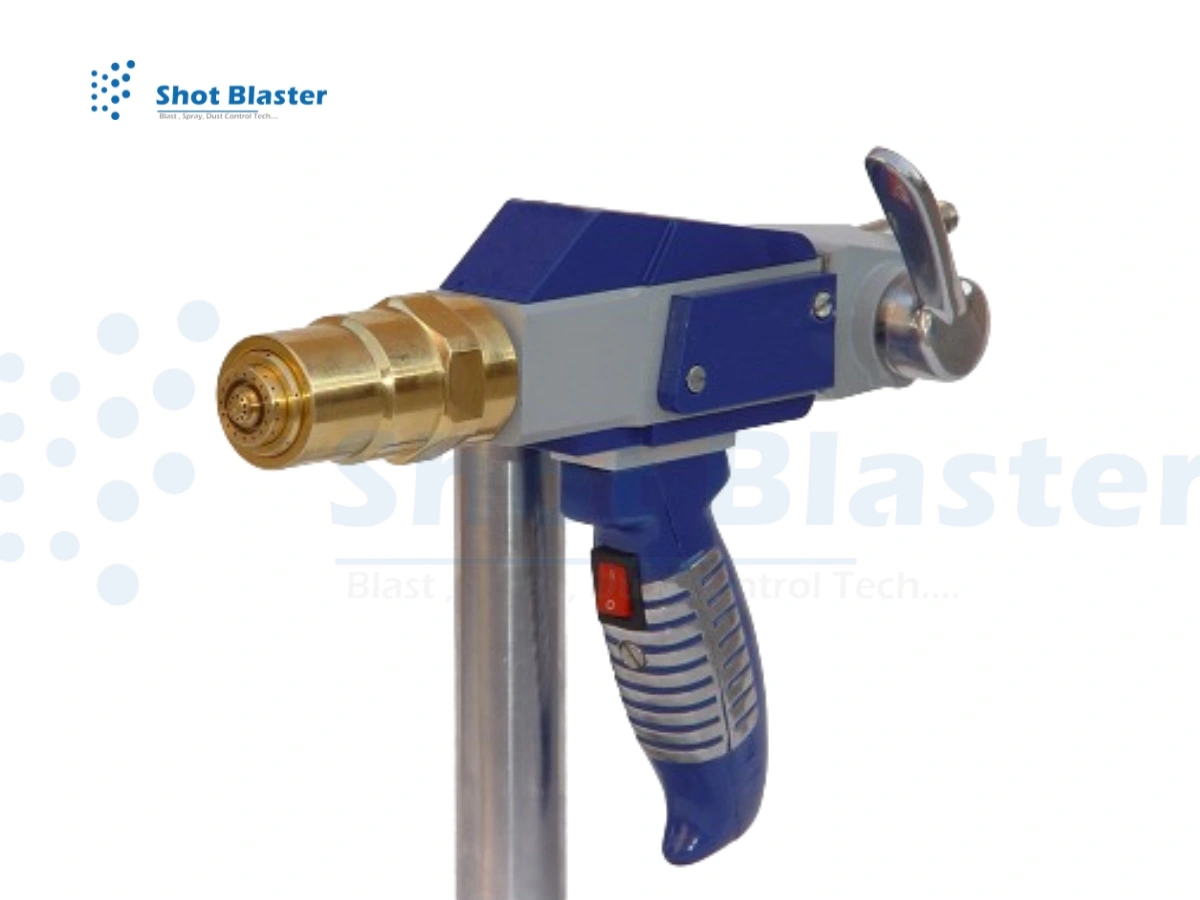

Powder Flame Spray Gun
A powder spray gun is a thermal spraying gun used to keep combustion thermal spray powders on to solid work surfaces. The powder to be sprayed is loaded during a hopper mounted on the gun, then fed by gravity through a metering valve into an aspirator chamber where it’s melted into fine particles and propelled by air towards the surface. With this model, the deposit efficiency is extremely high meaning only a minute amount of the powder is lost by being blown away or consumed within the flame. Sprayed coatings are typically very dense and uniform.
| Body Material | Stainless Steel |
| Air Pressure | 30-50 psi |
| Cup Capacity | 550 ml |
| Nozzle Size | 0.3 mm |
| Air Inlet | 1/4" |
- During construction projects, shot blasting is also used to clean the outer walls, roads, and floors.
- Shot blasting is often used to clean tanks and pipes underwater before coating or recoating them to stop corrosion.
- ShipYard and ShipBuilding.
- aircraft maintenance and aerospace.
- Foundry for iron, steel, and other metals.
- The casting of aluminum.
- Forgings.
- Rail.
- Foundries.
- fabrication of steel.
- Car and bus murals.
- Wheel cleaning for alloys.
The benefit of the powder flame spray gun process is that the coatings are prepared for almost immediate use with no drying times and no risk of breaking the component. Flame spray systems can regularly manually run, semi-automated, or fully-automated the method if required. The Powder Flame Spray process works a comparable technique as the Wire Flame Spray Gun method, but that the wire feedstock is replaced by a powder. The main benefit of this method is that a much wider variety of materials (such as nickel or cobalt-based self Fixing composites or ceramic substances) can be easily treated into powder form providing a greater choice of coatings. Many compounds are difficult or cannot be presented in a wire form and for this purpose, it was produced.
Powder Flame Spray Gun 6PS-II
The 6 PS -II is often used with either acetylene or hydrogen as the fuel gas. Hydrogen is suggested when spraying finer powder materials. A siphon plug system mixes the fuel and oxygen gases in precise volumetric proportions at the gun to supply consistent operation and prevent the possibility of backfire. Two siphon plugs are provided – a regular plug used with the bulk of spray materials and a second designed for high spray rate operations with ceramic and self-bonding materials.
Air caps supplied with the gun appropriately shape the flame for various applications. the standard air cap, used for many coatings, provides divergent gun cooling air which will not interfere with the flame or spray stream. A reversible air cap can be used to create a parallel airflow to cool down the workpiece or as a convergent pinch airflow to be used with fine materials, to extend the spray efficiency of certain materials, like carbides, or to get cleaner, brighter coatings produced from self-fluxing alloys. The specially designed high-performance nozzle accelerates spray powders efficiently by feeding the powders directly into the flame center of the gun & gives consistent deposition efficiency for various spraying.
Features of Powder Flame Spray Gun
- High deposit efficiency, Dense coatings.
- Sprays ceramics and metals powder materials.
- Simple to use, Suitable for spray/fuse coatings.
- Optional remote powder feeder.
- Cost-effective.
Application of Powder Flame Spray Gun
- Self-fluxing alloys for extreme wear applications
- Glass mold plungers
- Steel mill table rolls
- Spray/fused coatings
Powder Flame Spray Gun Manufacturer in India
Blast Rooms are a manufacturer of Flame Spray Gun, Wire Flame Spray Guns, Metal Spray Gun, Thermal Spray Gun, & Spare Parts at the lowest Price are low with the finest quality. Our Flame Spray Coating & Metal Spray Gun Equipments is permanent and simple to use and low maintenance. All these are used in Coating so it’s also called Flame Spray Coating Equipment.
