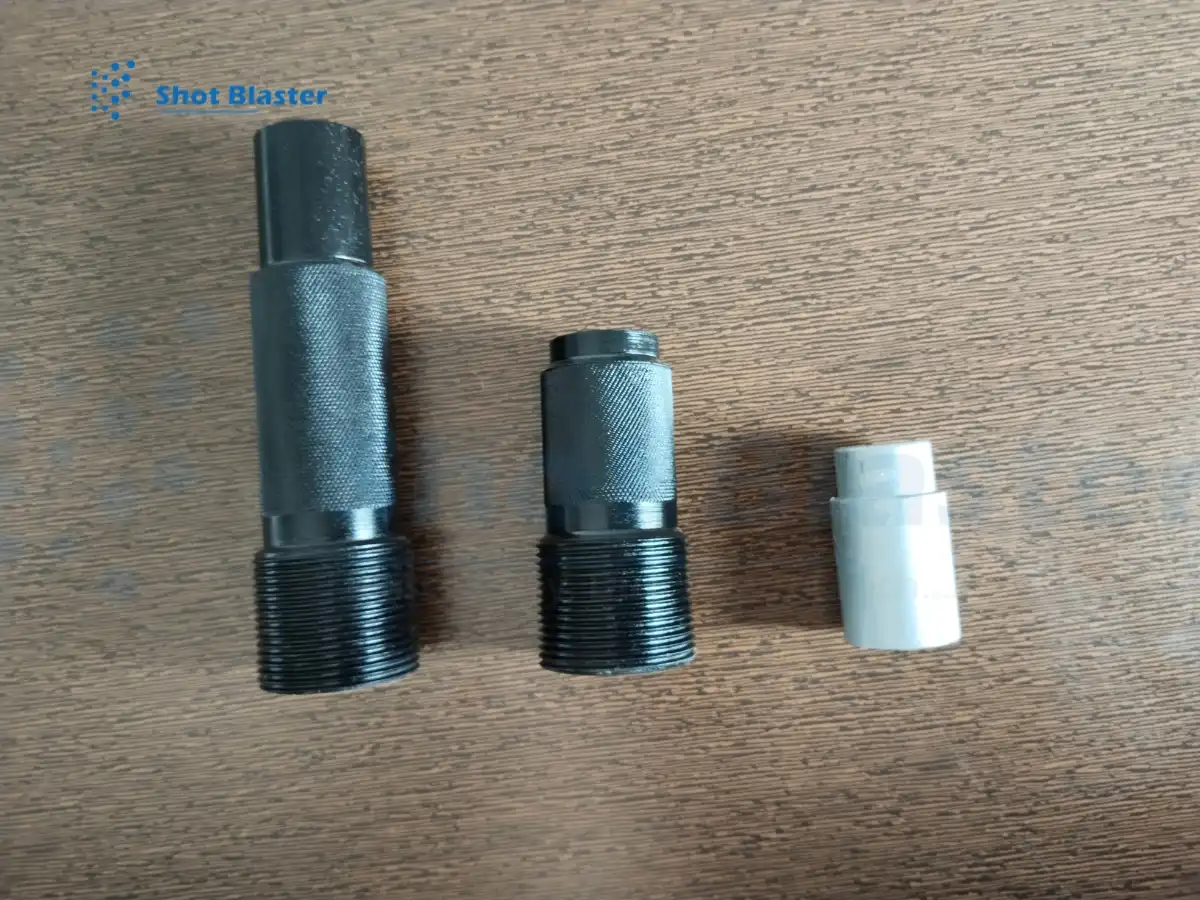

Sand Blasting Nozzle
A nozzle is a projecting pipe or device through which flow is discharge. The sand Blasting nozzle has a very different range in shapes, sizes, and in pressure bearing capacity. It can resist different ranges of pressures without getting broken.
| Nozzle | Durability | Impact Resistance | Price |
| Tungsten Carbide Nozzle | 1/5 | 5/5 | Low |
| Boron Carbide Nozzle | 3/5 | 1/5 | High |
| Nozzle | Blast Pattern | Production Rate |
| Venturi Nozzle Blasting Nozzle | 3″ at 18″ distance | 4.5/5 |
| Double Venturi Blasting Nozzle | 3″ at 18″ distance | 4/5 |
| Wide Throat Blasting Nozzle | 3″ at 18″ distance | 5/5 |
| XL Performance | 5″ at 48″ distance | 3/5 |
- During construction projects, shot blasting is also used to clean the outer walls, roads, and floors.
- Shot blasting is often used to clean tanks and pipes underwater before coating or recoating them to stop corrosion.
- ShipYard and ShipBuilding.
- aircraft maintenance and aerospace.
- Foundry for iron, steel, and other metals.
- The casting of aluminum.
- Forgings.
- Rail.
- Foundries.
- fabrication of steel.
- Car and bus murals.
- Wheel cleaning for alloys.
The Sand Blasting Nozzle is a device that is connected to the sandblasting hose and at different joints and with the help of that fluid or abrasives get a discharge with high pressure. Sand Blasting nozzle has a range of tips bore size, nozzle mouth diameter so that different blasting operations can be performed.
For any blasting machine design selection of nozzle is necessary and essential. The selection of nozzle mainly depends upon air compressor capacity and according to their production capabilities, the nozzle is selected. After selecting the correct design according to the compressor capacity now size and shapes are get selected so that a high production rate can be achieved without any damages and then other factors such as bore material, durability, impact resistance, and price are considered for the selection of nozzle.
Nozzle material also plays an important role in the selection of a nozzle. Material is used inlining of a bore at the inner side is basically of two types such as:
- Tungsten carbide nozzle
- Boron carbide nozzle
Tungsten Carbide Nozzle:
Tungsten carbide nozzles are the less durable nozzle but they are less costly and can resist impact. It can easily use with copper slag, glass, and mineral abrasive media. Tungsten carbide nozzles are a very appropriate option as per their production capabilities.
Boron Carbide Nozzle
Boron Carbide Nozzle is extremely hard and durable but brittle in nature and it can give ten times longer life than a tungsten carbide nozzle.
Types of Sand Blasting Nozzle
- Straight bore blasting nozzle
- Venturi type blasting nozzle
- Double venturi blasting nozzle
- Wide throat venturi nozzle
- XL performance nozzle
Straight Bore Blasting Nozzle
In a straight bore, nozzles compressed air enters from the end side or lest side (converging side) of the nozzle after that abrasive media start to accelerate and media particles are suspended in the flow. Then the abrasive media take the exit from the other side.
Shot Blasting Machine and in Sand Blasting cabinet work on straight bore nozzle creates a very fine and tight blast pattern.
Advantages:
- Ideal for smaller jobs
- Part cleaning operations are easy
- Can clean handrails
Venturi Type Blasting Nozzle
These nozzles are specially designed to increase the cleaning rates and to provide uniform abrasive distribution. Venturi nozzles usually have two sides such as converging and diverging. In which the converging side is known as the entry side and the diverging side is the exit side. It is designed in this way so that it can accelerate more airflow and media particles.
In the venturi effect, we have an observation that when an airflow accelerates there is a corresponding drop in pressure level. When the acceleration is produced media will spread out through its angled shape at the diverging end. Due to its unique design and sizes its abrasive consumption and productivity are 40% more than straight bore nozzles.
Advantages:
- Available in different sizes and shapes
- Productivity is more
- Media loss is less
Double Venturi Blasting Nozzle
A double venturi blasting nozzle is designed for jobs where large cutting patterns are required. This nozzle has an extra-wide exit opening and holes at the diverging end. In this nozzle atmospheric air is inserted through an extra hole into the low-pressure area so that airflow can be increased and a larger blasting pattern can be obtained on the blasting surface.
The advantage of using a double venturi blasting nozzle is that it can produce a 35% larger blasting pattern as compared to the long venturi nozzles.
Wide Throat Venturi Nozzle
In these nozzles, they have a wide throat and an additional ¼” wide converging section. When a wide throat venturi nozzle is used with a matching inside diameter after that corresponding air volume is increased hence it will give 15% more productivity as compared to a long venturi nozzle.
XL Performance Nozzle
XL nozzle is used when there is a need for extra-long nozzles accelerating media particles for a long distance. When the blaster is standing further back from the surface of blasting it achieve higher exit velocities. These nozzles can produce a high production rate with an increase in blasting patterns.
Sand Blasting Nozzle in India
Blast Rooms is a leading manufacturer and supplier of Sand Blasting Nozzle, Sand Blasting Machine, and different types of dust Collector, and other blasting machines like Grit Blasting Machine, and several coating equipments such as thermal spray Gun, and abrasive Media. our company is capable to provide the best quality machines on time.
Ans.
Sand blasting machine prices vary according to the cleaning rate and storage capacity. Sand blasting machines are available in many sizes as per the requirement.
Ans.
Sand blasting is a surface cleaning process. With the help of a sand blasting machine rust, and foreign particles remove easily. Sand blasting machine in India is available both in automatic and manual types.
Ans.
Sand blasting is easy to perform. While blasting it is necessary to wear operator safety wears so it will protect the operator from hazards. A portable sand blasting machine is used in an open area for large size of components. A portable sand blasting machine in India is a manual and semi-automatic type. Airless sand blasting machines are automatic and manual type as well.
Ans.
Sand blasting machine in India is available in many sizes. The weight of the sand blasting machine varies according to the size of the storage capacity tank. As the size of the capacity tank varies, sand blasting machine prices also vary.
Ans.
Sand blasting is a process of removing rust, old paint, burrs, and other impurities from the component surfaces. Sand blasting has a wide range of applications in many areas like wood, glass, steel, plastic, shipbuilding industries, on buildings, medical equipment, etc. Sand blasting machine in India also rough the smooth surface according to the application area.
Ans.
Sand blasting machine uses in various areas such as:-
- Railway coaches
- Handicrafts and wood
- Steel pipes
- Stones, Marbles, Granites
- Transformers and Tanks
- Military
- Shipyards
- Bridges
- Turbines
- Vehicle bodies, Automobiles, Turbocharges
- Windmill
- Casting, and forging
Ans.
An Air compressor is required for a sand blasting machine process. For an airless sand blasting machine, an electric wheel is used. Sand blasting machine in India is available in many varieties as per the requirement of the customers.
Ans.
For a sand blasting machine process minimum of 100 PSI air compressor is required. If work with a lower PSI cleaning rate of sand blasting machine in India is decreasing.
Ans.
Sand blasting machine in India gives surfaces a slightly textured profile. Sand blasting machine does not damage the component. Instead, sand blasting makes the component surface better so that thermal spray coating binds easily.
Ans.
In sand blasting most commonly used sand is white silica sand. Other blasting media such as aluminum oxide, glass beads, walnut shell, silicon carbide, etc are used in a sand blasting machine in India. Sand blasting machine price in India also vary as per the storage capacity of the tank.
